Both end with complete flange suitable to connect with general pipe flange.

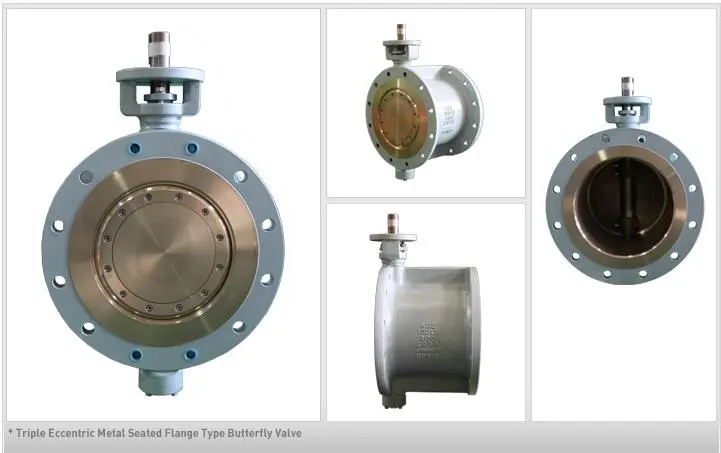

Triple eccentric design principle Metal seated high pressure butterfly valves provide bi-directional bubble tight shut off which achieved by introducing state of the triple eccentric disc geometry. The valve shaft is off set against the seat and the centre line of the valve body respectively. The seating edges are machined with a continuously changing slope from an angle on top of the oval seat ring to an angle at the opposite side. This geometry ensures that the seat ring stays clear of the seat except at the final shut off position which results long life seat.
