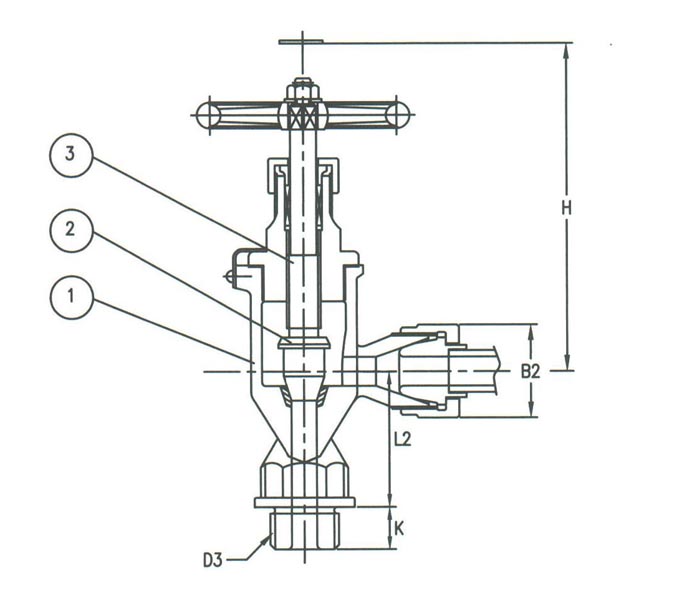

F7422 20K Forged Steel Angle Valve

1 – Body – Forged Steel – SF45
2 – Stem – Stainless Steel – SUS403
3 – Disc – Stainless Steel – SUS402J1

Manufactured in accordance to JIS F7400

Flanges as per JIS B2220 – 20K

Size L1 L2 H D3 Connection
015 N/A N/A 160 mm N/A Flanged
020 N/A N/A 190 mm N/A Flanged
025 N/A N/A 190 mm N/A Flanged
006 42.0 mm 38.0 mm 115 mm 20×1.5 Screwed
010 46.0 mm 45.0 mm 125 mm 24×2 Screwed
