F7421 20K Forged Steel Globe Valve

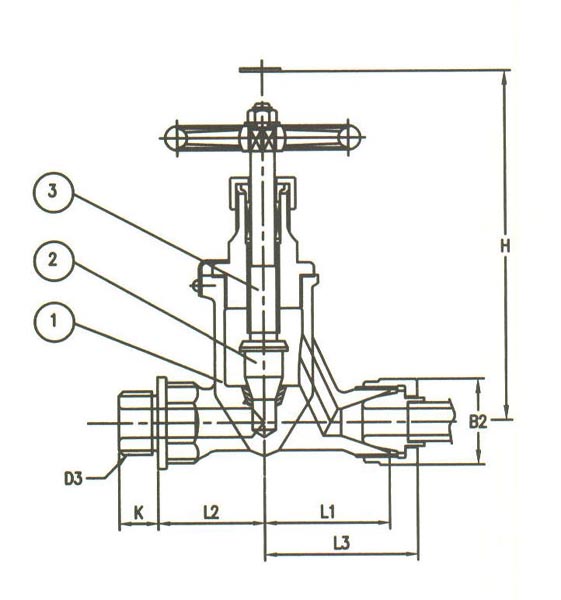

1 – Body – Forged Steel – SF45
2 – Stem – Stainless Steel – SUS403
3 – Disc – Stainless Steel – SUS402J1

Manufactured in accordance to JIS F7400

Flanges as per JIS B2220 – 20K

Size L L1 L2 H Connection
010 N/A N/A N/A N/A Flanged
015 140 mm N/A N/A 180 mm Flanged
020 160 mm N/A N/A 205 mm Flanged
025 180 mm N/A N/A 225 mm Flanged
006 N/A 42.0 mm 38.0 mm 125 mm Screwed
010 N/A 51.0 mm 45.0 mm 140 mm Screwed
006 84 mm 102 mm N/A 125 mm Union
010 102 mm 126 mm N/A 140 mm Union
