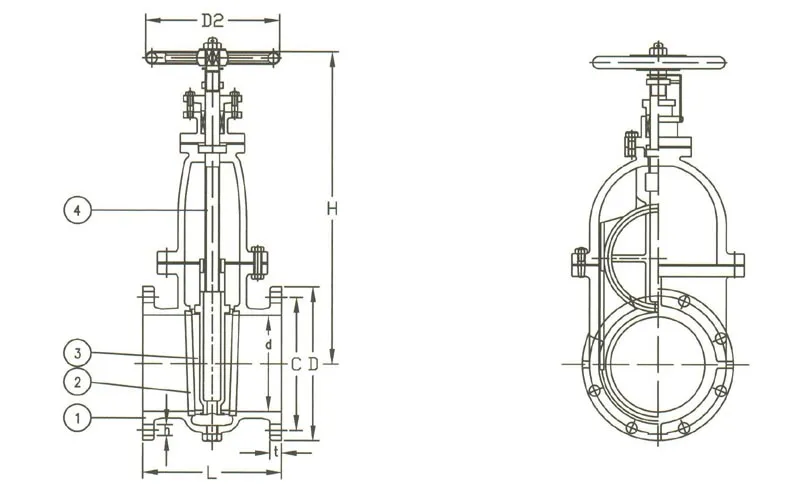

F7363 5K Cast Iron Gate Valve

1 – Body – Cast Iron – FC20
2 – Seat – Bronze – BC6
3 – Disc – Bronze – BC6
4 – Stem – Brass – C3771BD

Manufactured in accordance to JIS F7400

Flanges as per JIS B2220 – 5K

Size	L1	D	C	NO. OF HOLES	h
050	180 mm	130 mm	105 mm	4	15 mm
065	190 mm	155 mm	130 mm	4	15 mm
080	200 mm	180 mm	145 mm	4	19 mm
100	230 mm	200 mm	165 mm	8	19 mm
125	250 mm	235 mm	200 mm	8	19 mm
150	270 mm	265 mm	230 mm	8	19 mm
175	280 mm	300 mm	260 mm	8	N/A
200	290 mm	320 mm	280 mm	8	23 mm
250	330 mm	385 mm	345 mm	12	23 mm
300	370 mm	430 mm	390 mm	12	23 mm
350	410 mm	480 mm	435 mm	12	25 mm
400	470 mm	540 mm	495 mm	16	25 mm
450	500 mm	605 mm	555 mm	16	25 mm
500	550 mm	655 mm	605 mm	20	25 mm
