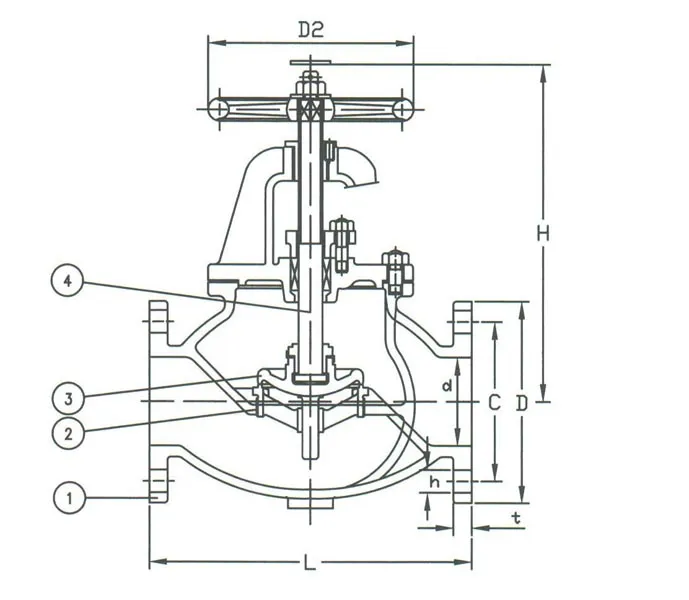

F7311 5K Cast Steel Globe Valve

1 – Body – Cast Steel – SC46
2 – Seat – Stainless Steel – SCS2
3 – Disc – Stainless Steel – SCS2
4 – Stem – Stainless Steel – SUS403

Manufactured in accordance to JIS F7400

Flanges as per JIS B2220 – 5K

SIZE L D C NO. OF HOLES h
050 210 mm 130 mm 105 mm 4 15 mm
065 250 mm 155 mm 130 mm 4 15 mm
080 280 mm 180 mm 145 mm 4 19 mm
100 340 mm 200 mm 165 mm 8 19 mm
125 410 mm 235 mm 200 mm 8 19 mm
150 480 mm 265 mm 230 mm 8 19 mm
200 570 mm 320 mm 280 mm 8 23 mm
250 740 mm 385 mm 345 mm 12 23 mm
300 840 mm 430 mm 390 mm 12 23 mm
