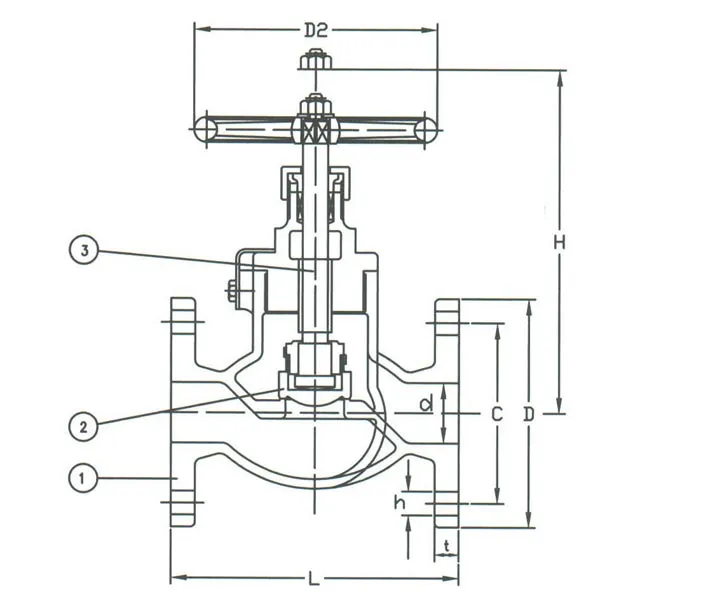

1 – Body – Bronze – BC6
2 – Disc – Bronze – BC6
3 – Stem – Brass – C3771BD
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220 – 5K
| SIZE | L | D | C | NO. OF HOLES | h |
| 015A | 100 mm | 80 mm | 60 mm | 4 | 12 mm |
| 020A | 110 mm | 85 mm | 65 mm | 4 | 12 mm |
| 025A | 120 mm | 95 mm | 75 mm | 4 | 12 mm |
| 032A | 140 mm | 115 mm | 90 mm | 4 | 15 mm |
| 040A | 160 mm | 120 mm | 95 mm | 4 | 15 mm |
| 050A | 210 mm | 130 mm | 105 mm | 4 | 15 mm |
| 065A | 250 mm | 155 mm | 130 mm | 4 | 15 mm |
